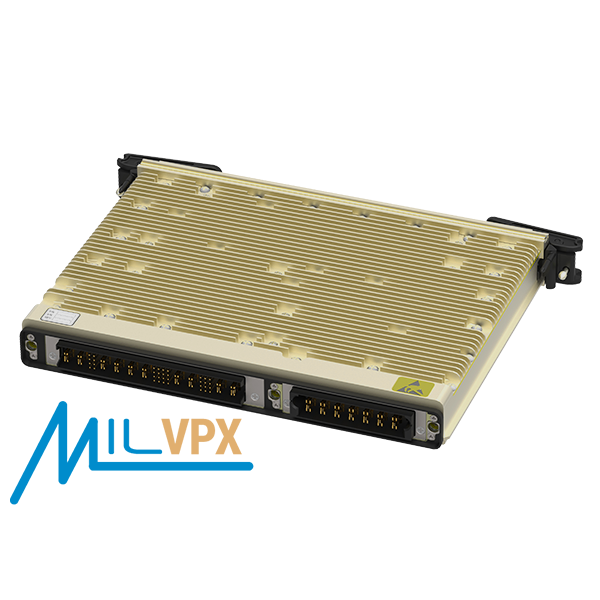

M4705 Series VITA 62 VPX SOLUTIONS Three Phase

Key Features
Product Type:Power Supply (Converter)
Input:103-127VAC | Three Phase | 400Hz
Output(s):Two
Output Power:1100W
Filters:EMI Filters Included
Efficiency:87%
Operating Temp.:-55°C to 55°C
Designed to Meet:MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | SOSA™
Compliance:VITA 62
Developed in alignment with the SOSA™ Technical Standard
Standard Configurations
Model Power Output 1 Output 2
M4705-100 1100W 12V @ 105A aux_3.3V @ 30A
M4705 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Base Specifications
Form Factor:6U
Dimensions:6U, 1.18"6U, 1.18"
Current Share:Yes
Communication Protocol: 46.11
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 V to 12V @ 105A
#2 V to aux 3.3V @ 30A
#3 V to opt 12V @ 1A
#4 V to opt -12V @ 1A
Description

M4705 is a military grade 6U VPX, 115Vac 3 phase AC-DC, SOSA™ aligned power supply that provides 12V and 3.3VAUX per VITA 62 that is rated at 1200W output power.  Features include: VITA 48.7 air-flowby cooling, 1" pitch, current-sharing, internal EMI filters, VITA 46.11 system management. DC input range is 126-154Vac per MIL-STD-704.  Designed to meet MIL-STD-810 and MIL-STD-461.

Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
