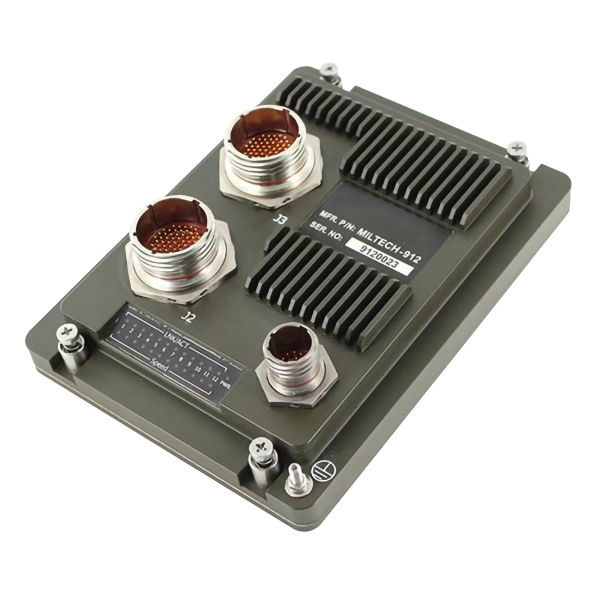

MILTECH 912 Rugged Military Gigabit Ethernet Switch - 12 Port

Download Data Sheet Here

Key Features

ImperialMetric

Product Type:	Ethernet switch
Management:	Managed
Ports:	12 x 10/100/1000M Copper
Connectors:	Power: D38999 LAN: D38999
Designed to Meet:	MIL-STD-1275 \| MIL-STD-704 \| MIL-STD-810 \| MIL-STD-461 \| IP67
Dimensions:	7.01" X 5.35" X 1.85"178.1mm X 136mm X 47.1mm
Weight:	40.57oz1150g
Operating Temp.:	-45°C to 85°C
Power input:	24VDC (16 - 36VDC), 7W

The MILTECH 912 is a 12 port (divided between two MIL-D-38999 connectors) MIL-STD, rugged, managed Layer 2 Ethernet switch with advanced Layer 3 static routing capabilities. It is specifically designed for complex traffic applications featuring IEEE-STD-1588 (PTP) Capabilities and Synchronous Ethernet (SyncE).

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

Standard Configurations

	Model	Description
	1-912-000	Military Rugged, 12 x 10/100/1G TX, Managed Switch with Nickle Plated D38999 Connectors
	1-912-001	Military Rugged, 12 x 10/100/1G TX, Managed Switch with Olive-Drab D38999 Connectors
	1-912-002	Military Rugged, 12 x 10/100/1G TX, Managed Switch with Marine Aluminum Bronze D38999 Connectors
	1-912-003	Military Rugged, 12 x 10/100/1G TX, Managed Switch with Olive-Drab D38999 Connectors (J2 Keyway A, J3 Keyway N)
	1-912-101	Enhanced Military Rugged 12 x 10/100/1G TX, Managed Switch with Olive-Drab D38999 Connectors
	1-912-102	Enhanced Military Rugged, 12 x 10/100/1G TX, Managed Switch with Marine Aluminum Bronze D38999 Connectors
	MILTECH 912	Additional configurations available

2-CBL912PWR 3M power harness
2-CBL912LANCON 3M lan and console harness, 38999 to 4 x RJ45 + 1 x DB9
2-CBL918PWR3M 3M power harness

Description

The compact MILTECH 912 saves valuable real estate on mobile platforms such as unmanned and manned airborne platforms, ground and underwater vehicles. Its advanced network features include on-device IPv4 and IPv6 unicast routing between virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation. Layer 3 on-device IPv4 and IPv6 static routing allows pre-configured routing between VLANs.

The MILTECH 912’s gigabit speeds and MIL-STD-1275 28VDC power bus make it instantly compatible with network device and power systems

Resources

MILTECH 912 Data Sheet

Tailored Products to Meet Your Requirements

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.

Learn More
