M2705 Series AC-DC Power Supplies Three Phase

Key Features
Product Type:Power Supply (Converter)
Input:103-125VAC | Three Phase | 400Hz
Output Power:1500W
Filters:EMI Filters Included
Operating Temp.:-51°C to 93°C
Designed to Meet:MIL-STD-704 | MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power Output 1
M2705-100 1500W 270V @ 5.5A
M2705 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Base Specifications
Form Factor:Baseplate Mount
Dimensions:14.88" X 9.12" X 1.96"377.95mm X 231.65mm X 49.78mm
Power Factor:0.65-0.9
Fixed switching frequency:400kHz

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 V to 270V @ 5.5A

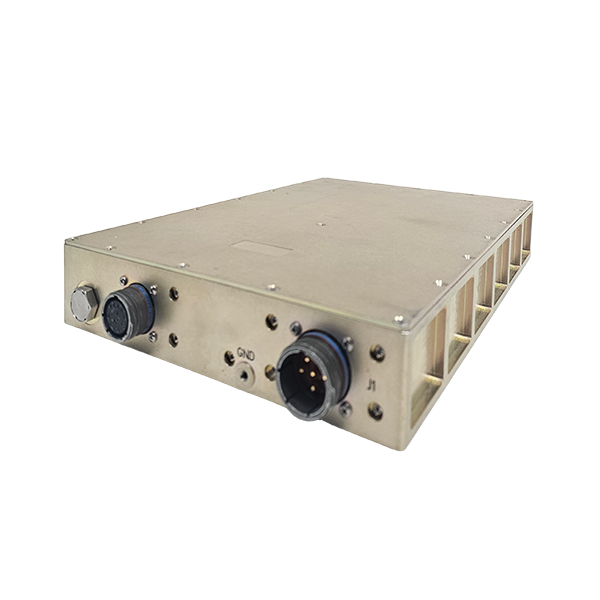

The M2705 military power supply is a rugged 3 phase AC to DC converter, accepts a 115VAC input range from 103 to 125VAC, 400Hz and provides a single DC output of 270V, up to 1500W, with custom outputs available. Designed to meet military standards, MIL-STD-704, MIL-STD-810, MIL-STD-461.

This unit is sealed to protect against fluids, with a breather valve for condensation exhaust. M2705 is based upon field proven M2703, with a front end that provides a lagging power factor and additional hold circuity.

3D Model (STEP file)
Tailored Products to Meet Your Requirements

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
