M4365 Series VITA 62 VPX SOLUTIONS

Key Features
Product Type:Power Supply (Converter)
Input:18-48VDC
Output(s):Six
Output Power:600W
Efficiency:88%
Operating Temp.:-55°C to 85°C
Designed to Meet:MIL-STD-1275 | DEF Stan 61-5 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461
Compliance:VITA 62
Standard Configurations
Model Power Output 1 Output 2 Output 3 Output 4 Output 5 Output 6
M4365-100 616.5W 12V @ 30A 3.3V @ 20A 5V @ 30A aux_12V @ 1A aux_-12V @ 1A aux_3.3V @ 5A
M4365-101 616.5W 12V @ 30A 3.3V @ 20A 5V @ 30A aux_-12V @ 1A aux_-12V @ 1A aux_3.3V @ 5A
M4365-103 616.5W 12V @ 30A 3.3V @ 20A 5V @ 30A aux_12V @ 1A aux_-12V @ 1A aux_3.3V @ 5A
M4365-104 616.5W 12V @ 30A 3.3V @ 20A 5V @ 30A aux_12V @ 1A aux_-12V @ 1A aux_3.3V @ 5A
M4365-105 616.5W 12V @ 30A 3.3V @ 20A 5V @ 30A aux_12V @ 1A aux_-12V @ 1A aux_3.3V @ 5A
M4365 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY

To see a complete listing of the unique power attributes and features of each Standard Configuration of this product, please download the associated Catalog Page in the Resources section below.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Base Specifications
Form Factor:3U
Weight:28.08oz796.05g
Dimensions:3U, 1"3U, 1"
Current Share:Optional
Communication Protocol: I2C
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 V to 12V @ 30A
#2 V to 3.3V @ 20A
#3 V to 5V @ 30A
#4 V to aux 3.3V @ 5A
#5 V to aux 12V @ 1A
#6 V to aux -12V @ 1A
Description

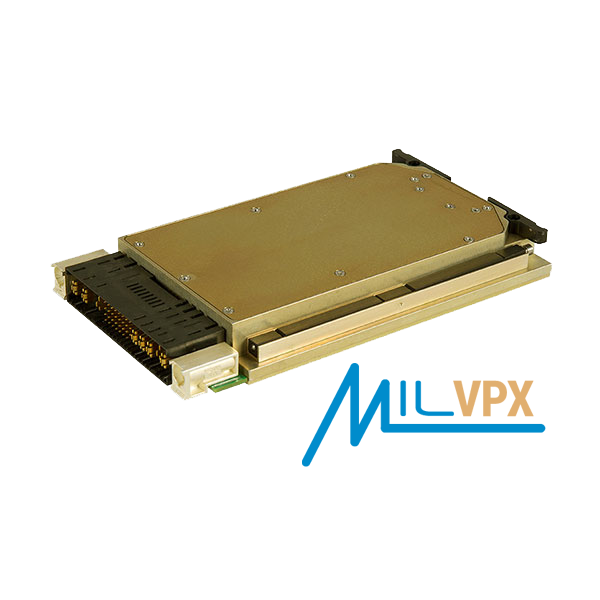

M4365 is a military grade 3U VPX, 28V DC-DC PSU card that provides six outputs per VITA 62 and is rated at 350W output power.  Features include: 1" pitch, fast initialization, reverse battery protection, internal EMI filters, I2C and VITA 46.11 system management, current-sharing. DC input range is 18-50V per MIL-STD-704 and DO-160, but variants support ranges of 12-100V per MIL-STD-1275 and Def Stan 61-5.  Designed to meet MIL-STD-810 and MIL-STD-461.

Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
