M785 Series DC-DC Power Supplies
PCB Mount

Key Features
Product Type:Power Supply (Converter)
Input:13.5-36VDC
Output(s):One
Output Power:25W
Filters:EMI Filters Included
Efficiency:75%
Operating Temp.:-55°C to 85°C
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power Output 1
M785-100 10.4W 2.6V @ 4A
*Input for this configuration: 13.5 to 22 VDC
M785-101 13.2W 3.3V @ 4A
M785-102 20W 5V @ 4A
M785-103 30W 12V @ 2.5A
M785-104 24W 24V @ 1A
M785-105 23.8W 28V @ 0.85A
M785 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Base Specifications
Form Factor:PCB Mount
Weight:1.8oz51g
Dimensions:1.99" X 1.99" X 0.49"50.5mm X 50.5mm X 12.5mm
Fixed switching frequency:250kHz
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Description

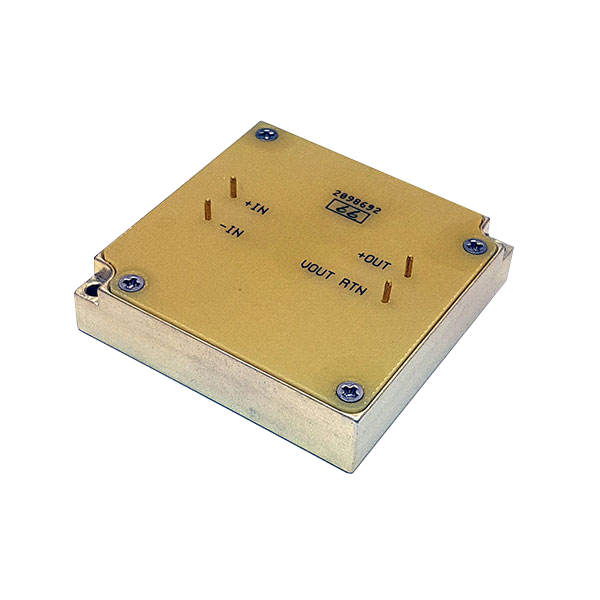

The M785 PCB mounted military power supply is a rugged single output DC to DC converter which accepts an 13.5 - 36VDC input voltage range and provides a single DC output from 2.1 to 28VDC at up to 25W. Custom outputs available upon request and the unit is Designed to meet military standards, MIL-STD-704, MIL-STD-1275, MIL-STD-810, MIL-STD-461.

Resources
3D Model (STEP file)
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
