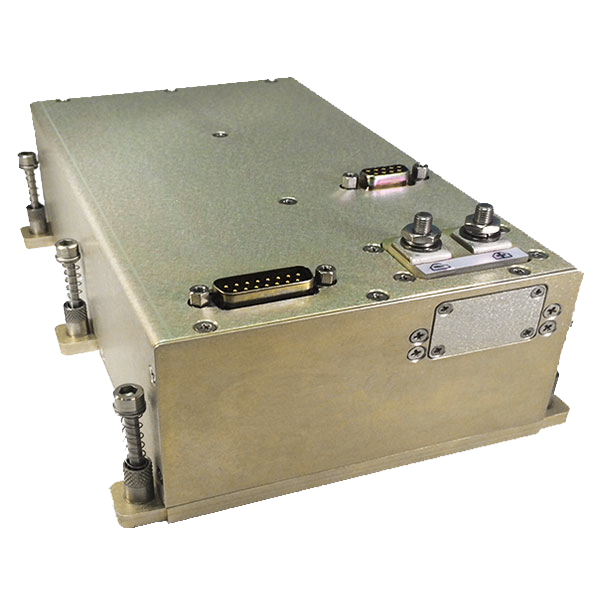

M3110 Series AC-DC Power Supplies Three Phase

Key Features
Product Type:Power Supply (Converter)
Input:103-127VAC | Three Phase | 50/60/400Hz
Output(s):One
Output Power:1000W
Filters:EMI Filters Included
Efficiency:88%
Operating Temp.:-40°C to 71°C
Designed to Meet:MIL-STD-704 | MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power Output 1
M3110-100 200W 5V @ 40A
M3110-101 480W 12V @ 40A
M3110-102 600W 15V @ 40A
M3110-103 960W 24V @ 40A
M3110-104 1008W 28V @ 36A
M3110-105 1008W 48V @ 21A
M3110 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Base Specifications
Form Factor:Baseplate Mount
Weight:6lbs2721.55g
Dimensions:7.89" X 5.6" X 3.3"200.41mm X 142.24mm X 83.82mm
Power Factor:0.97
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 5V to 50V @ 40A
Description

The M3110 military power supply is a rugged 3 phase AC to DC converter, accepts a 115 AC input range from 100 to 130VAC, L-N, 50/60/400Hz and provides a single DC output from 5V to 50V, up to 1000W, with custom outputs available. Has high power factor and low THDI. Designed to meet military standards, MIL-STD-704, MIL-STD-810, MIL-STD-461.

Resources
3D Model (STEP file)
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
