| Product Type: | Router |
| Management: | Managed |
| Ports: | 8 x 10/100/1000M Copper
4 x 1/10G Copper 4 x 1/10G Fiber Input clocks are programmable and can be changed on the fly using a CLI command. |
| Connectors: | Power: D38999 Clocks: D38999 LAN: D38999 Fiber: TacBeam |
| Designed to Meet: | MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67 |
| Dimensions: | 13.54" X 8.03" X 3.11"344mm X 204mm X 79mm |
| Weight: | 141.1oz4000g |
| Operating Temp.: | -40°C to 71°C |
| Power input: | 28VDC (18 - 48VDC), 83W |
| Special Features: | CISCO IOS Internal SOM |

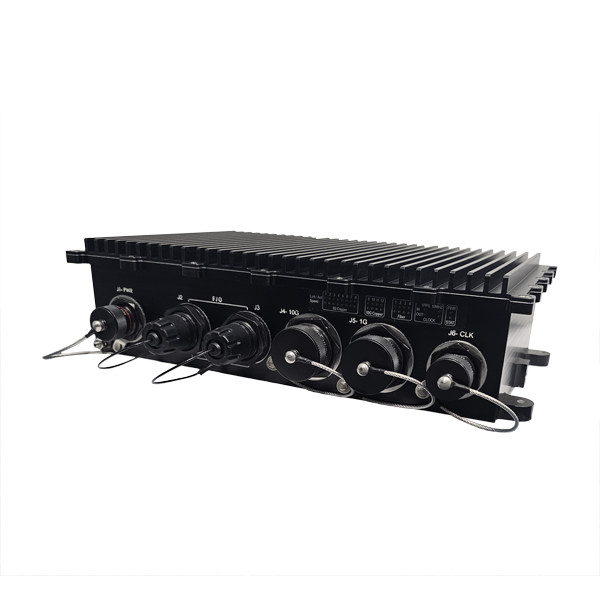

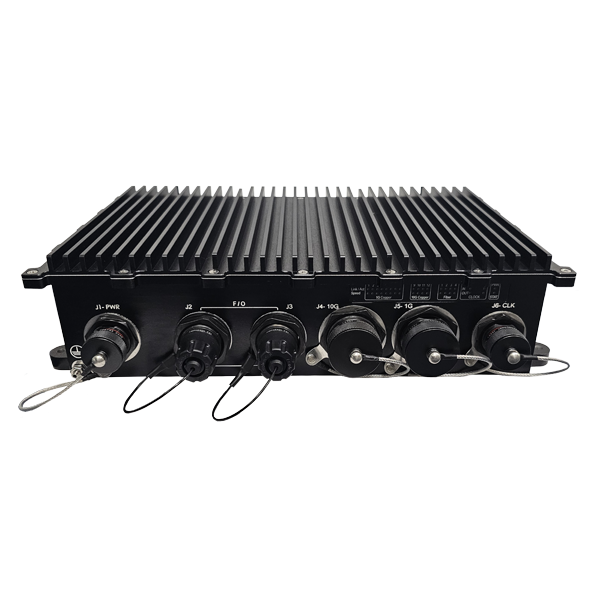

| The MILTECH 9117 TSN is a high-performance military Ethernet switch featuring advanced TSN for precise timing, an Intel Atom® x6413E SBC, and accurate clock ports supporting SyncE and PTP profiles. Integrated with Cisco IOS, it offers robust networking capabilities, including IPv4/IPv6 routing and advanced QoS for reliable voice and video connections, making it ideal for demanding military environments. The rugged design ensures durability in harsh conditions, while the comprehensive security features protect against unauthorized access. Additionally, the switch supports various management interfaces, making it easy to configure and monitor. This combination of features makes the MILTECH 9117 TSN a versatile and reliable solution for critical military applications. |
|
The MILTECH 9117 TSN is a high-performance Ethernet switch designed for military applications, featuring advanced TSN capabilities. TSN ensures precise timing and synchronization for critical data transmission, making it ideal for real-time applications. This switch integrates an SBC with an Intel Atom® x6413E CPU, 8GB of LPDDR4 memory, and 64GB eMMC storage, running on Red Hat Enterprise Linux. This setup provides robust processing power and reliability. The clock ports include 1PPS and 10MHz inputs and outputs, supporting SyncE, PTP profiles, and NTPv4 for accurate time synchronization across the network. Additionally, the MILTECH 9117 TSN incorporates Cisco IOS software, offering comprehensive networking features such as IPv4/IPv6 routing, multicast protocols, and advanced QoS to ensure high-quality voice and video connections. This combination of TSN, SBC, precise clocks, and Cisco IOS makes the MILTECH 9117 TSN a versatile and reliable solution for demanding military networking environments. |
|
