MILTECH 9022 Military Managed 12 Ports with 4 x 10G Fiber Ports Switch/Router

Key Features
Product Type:Router
Management:Managed
Ports:
12 x 10/100/1000M Copper
4 x 1/10G Fiber
Connectors:
Power: D38949
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:19" X 9.53" X 1.73"482.6mm X 242.06mm X 43.94mm
Weight:109.35oz3100g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC)
220VAC (90 - 230VAC)
20W

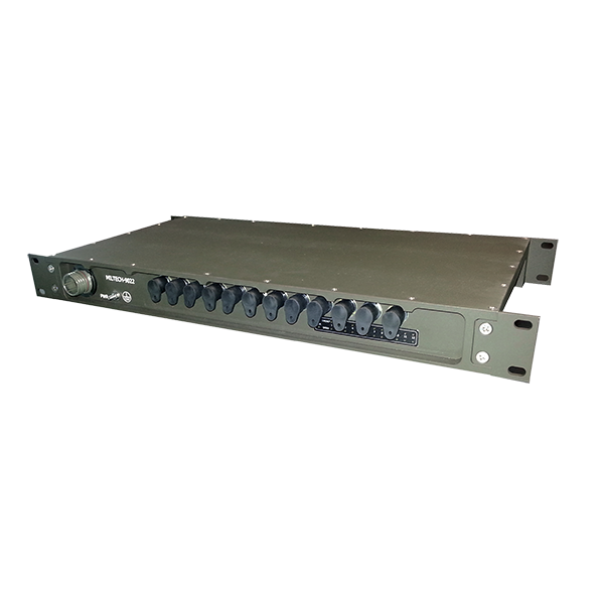

The MILTECH 9022 is a rugged, MIL-STD 1U rack-mountable Layer 2 Ethernet switch with dynamic routing supporting 12 X 10/100/1000Mbps ports and 4 X 1G/10G fiber ports.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-9022-XXXX 19” 12XL3 Gigabit Switch 1U + Optional 4X1G Fiber
MILTECH 9022 Additional configurations available
  • 2-CBL9028LAN 2-CBL9028LAN 3M lan harness
  • 2-CBL9028PWR 2-CBL9028PWR 3M power harness
  • 2-CBL9028LN+ 2-CBL9028LN+ 3M lan and console harness, SCE2 to RJ45 + DB9
Description
The MILTECH 9022 is designed for large mobile and shipboard platforms that require connection and process a large about of data at 1 Gbps and higher speeds at 10 Gbps. Its network switching and routing capabilities, include virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation. Additionally, it supports Layer 3 dynamic routing. 24VDC power make it instantly compatible with network devices and power systems. An optional redundant power connection adds to overall system survivability.

The unit is designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental, EMI/RFI compliance and high reliability.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
