| Product Type: | Ethernet switch |
| Management: | Managed |
| Ports: | 8 x 10/100/1000M Copper + PoE |
| Connectors: | Power: D38999 LAN: RTV07RW9-9SS25 Management: RS-232 |
| Designed to Meet: | MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP68 |
| Dimensions: | 10.59" X 5.24" X 2.8"269mm X 133mm X 71mm |
| Weight: | 42.33oz1200g |
| Operating Temp.: | -45°C to 85°C |
| Power input: | 24VDC (18 - 32VDC), 7W |
| Special Features: | PoE |

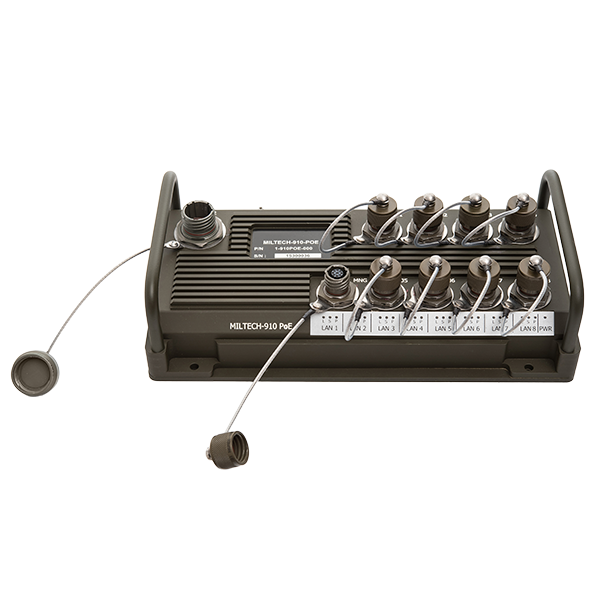

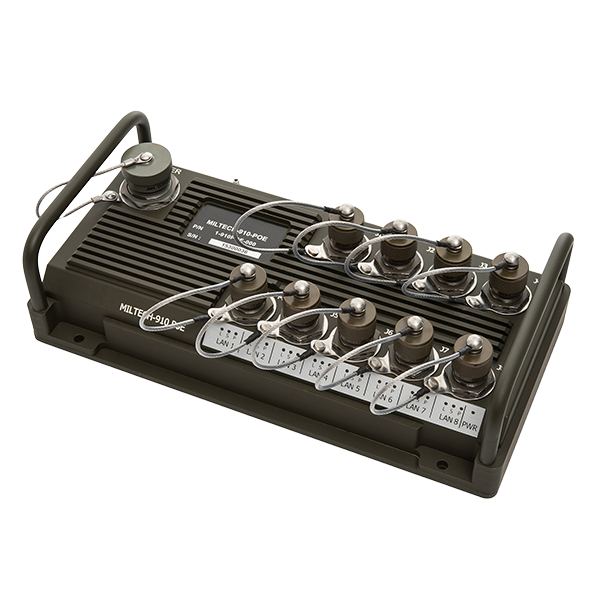

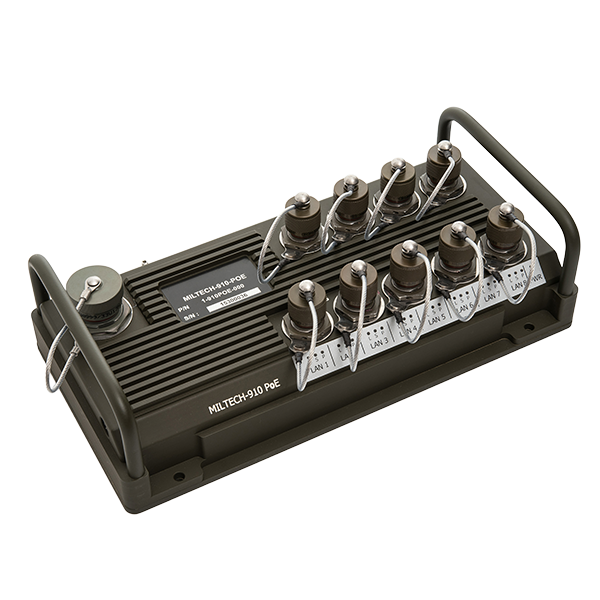

The MILTECH 910-POE simplifies cabling and reduces space requirements in mobile Ethernet-equipped platforms. By using a single CAT 5 Ethernet cable connected to a data port it provides both data connection and electrical power to the networked devices such as vetronic, ground vehicles and aerial applications where traditional power sources have limited availability.
The MILTECH 910-POE's intelligent design allows it to be configured to support up to 60W of PoE on any port up to a maximum power budget of 330 watts in total. It supports both 802.3af and 802.3at standard devices for PoE-enabled cameras, Wi-Fi access points, tactical IP phones, mesh nodes and other devices.
The MILTECH 910-PoE is fully managed with advanced network features such as switching protocols, virtual LANS (VLANS), traffic prioritization, and bandwidth aggregation. It provides full PoE protocol management with dynamic power allocation and power priority settings on each port.
