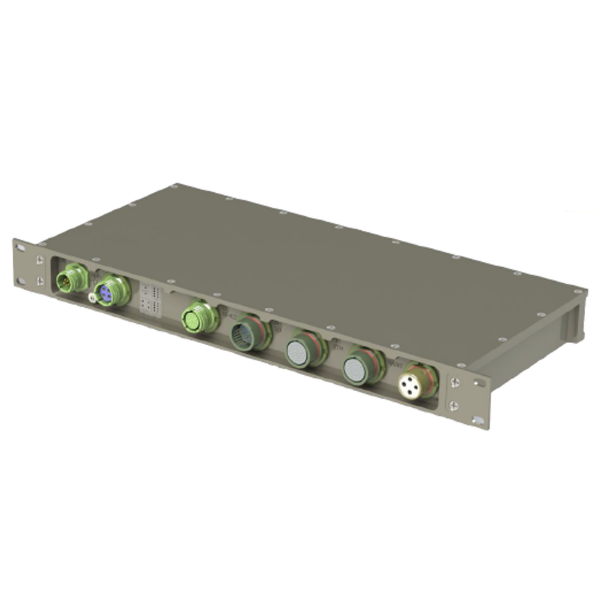

MILTECH 2042 Military Rugged Video/Serial/IO/LAN Over Fiber Communication System

Download Data Sheet Here

Key Features

ImperialMetric

Product Type:	Media converter
Management:	Managed
Ports:	4 x 1G Fiber 4 x Serial 4 x Composite Video
Connectors:	Power: D38999 LAN: D38999 Fiber: D38999 Service: D38999 I/O: D38999 Video: D38999
Designed to Meet:	MIL-STD-1275 \| MIL-STD-704 \| MIL-STD-810 \| MIL-STD-461 \| IP67
Dimensions:	18.98" X 8.19" X 1.73"482mm X 208mm X 44mm
Weight:	105.82oz3000g
Operating Temp.:	-40°C to 71°C
Power input:	24VDC (18 - 36VDC), 20W

MILTECH™2042 is a rugged MIL-STD media converter/transceiver system that allows communicating end to end RS422/Discrete/IO/Composite Video/Ethernet over four F/O channels

Standard Configurations

	Model	Description
	MILTECH 2042	Additional configurations available

Description

MILTECH™2042 Series is a MIL-STD rugged, communication system intended for transferring Video, Serial (RS-422), Discrete Signals and Gigabit Ethernet over single-strand Tactical Fibers. Providing 4 x 10/100/1000Base-T ports, 1Gb Fiber optic, 4 x RS422 serial interfaces, 2 x Composite Video inputs/outputs and 7 x Discrete inputs and outputs, this device is designed to meet the needs of manned/autonomous vehicles, Avionics and UAVs, and mobile equipment in battlefield environments.

Resources

MILTECH 2042 Data Sheet Milpower 05 18 2026
