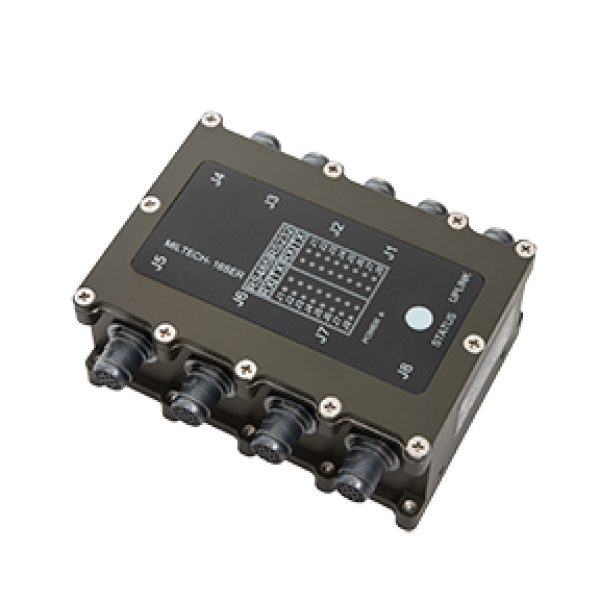

MILTECH 16SER Compact IP68 Military Rugged Serial over USB Unit

Download Data Sheet Here

Key Features

ImperialMetric

Product Type:	Media converter
Management:	Unmanaged
Ports:	2 x USB 16 x Serial
Connectors:	USB: SCE2 Power: SCE2
Designed to Meet:	MIL-STD-1275 \| MIL-STD-704 \| MIL-STD-810 \| MIL-STD-461 \| IP68
Dimensions:	3.94" X 3.5" X 1.57"100mm X 89mm X 40mm
Weight:	13.76oz390g
Operating Temp.:	-45°C to 85°C
Power input:	24VDC (16 - 36VDC), 4W

The MILTECH 16SER is a military-grade, rugged serial over USB unit with 16 serial ports (8 x RS232 over USB + 8 x RS485/422 over USB).

Standard Configurations

	Model	Description
	1-16SER-000	Military Grade16 Serial Ports Over USB
	1-16SER-001	Military Grade 8 * RS232 + 8 * RS485 (Half Duplex) Ports Over USB
	1-16SER-002	Military Grade 8 * RS232 + 8 * RS422 Ports Over USB With Metal Caps
	MILTECH 16SER	Additional configurations available

Description

The MILTECH 16SER serves as a robust commercial off-the-shelf (COTS) solution for rugged Serial connectivity, which can be used in a wide range of secured military and commercial applications on UAVs, Land autonomous vehicles (UGVs), Robots, and Mobile equipment fielded in harsh environments.

The 16SER enables one way data transmission for securing information breach from classified networks to unclassified domains. It features internal Enable/Disable TX/RX switches that controls which way data can flow to and from serial-connected devices. Remote software control for the switches is available through 12C. Interface through sealed MIL-STD circular connectors, with a 24VDC power makes it instantly compatible with network device and power systems. Up to 5 devices can be cascaded for a maximum of 80 serial interfaces over a single USB port. The MILTECH 16SER meets MIL-STD-461, MIL-STD-810, MIL-STD-1275, MIL-STD-704, IP68.
