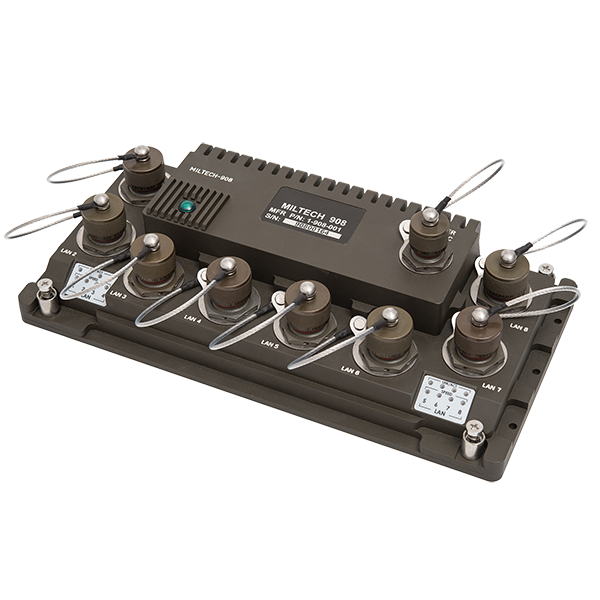

MILTECH 908 Military Gigabit Ethernet Managed Switch - 8 Port

Key Features
Product Type:Ethernet switch
Management:Managed
Ports:
8 x 10/100/1000M Copper
Connectors:
Power: D38999
LAN: D38999
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:10.59" X 5.23" X 2.82"269mm X 132.9mm X 71.7mm
Weight:52.91oz1500g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC), 7W

The MILTECH 908 is a MIL-STD, fully managed network switch with 8 individual triple speed (10/100/1000) ports using MIL-D-38999 connectors. It is specifically designed for complex traffic applications featuring IEEE-STD-1588 (PTP) Capabilities and Synchronous Ethernet (SyncE).

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-908-001 Managed military grade gigabit switch, 8 x 10/100/1000TX
1-908-101 Enhanced Managed Military Grade Gigabit Ethernet Switch, 8 x 10/100/1000TX
MILTECH 908 Additional configurations available
  • 2-CBL908LAN 2-CBL908LAN LAN harness for single LAN ports, D-38999 to RJ45 connector, 3 meters length
  • 2-CBL908MNG 2-CBL908MNG 3M LAN+MNG-LAN and management harness for single LAN ports, D38999 to RJ45 + DB9
  • 2-CBL908PW3M 2-CBL908PW3M 3M Power harness D38999 to open wires
Description

The MILTECH 908 serves as a robust COTS solution for providing local area network (LAN) connectivity to IP-enabled computing and net-centric devices in ground vehicle and airborne applications.

Its advanced network features include on-device IPv4 and IPv6 unicast routing between virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation. Layer 3 on-device IPv4 and IPv6 static routing allows pre-configured routing between VLANs.

Developed specifically for military and harsh avionic applications, the MILTECH 908 features MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental, and EMI/RFI compliance for high reliability. The unit has been especially hardened to improve ingress, impact, and shock/vibration protection, and all moving parts have been eliminated through passive cooling.



Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.

Learn More
