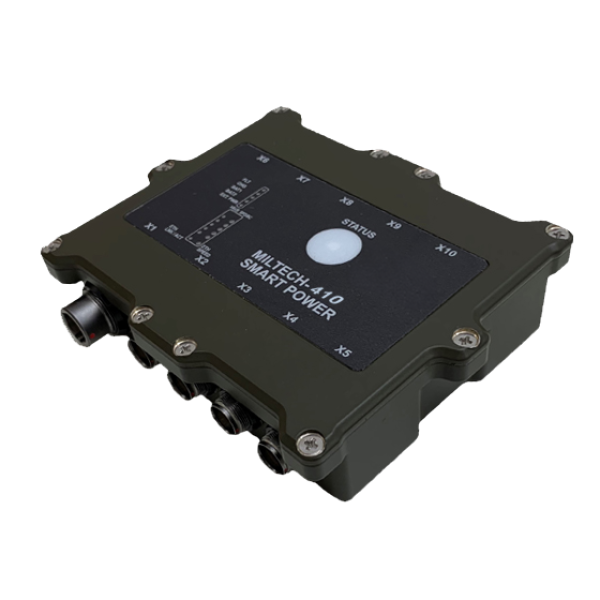

MILTECH 410
Integrated Soldier Power and Data Management System (ISPDS) With USB.3.0 and 1G LAN Capabilities

Key Features

Product Type:USB
Management:Managed
Ports:
1 x Up to 2 battery input | GK1YAR-P16UC00-000L
1 x External power input and battery charge | GK0WAM-P09UM00-000L
1 x LAN 1Gb | GK0WAM-P12UM00-000L
1 x 10.8-12.6Vdc (Vbat) Power supply | GK0WAM-P12UM00-000L
5 x USB 3.0 downstream ports | GK0WAM-P12UM00-000L
1 x USB 3.0 upstream + 12V/1A power supply | GK0WAM-P12UM00-000L
Connectors:
:
Designed to Meet:MIL-STD-1275 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:4.54" X 3.58" X 1.06"115.2mm X 91mm X 26.9mm
Weight:11.64oz330g
Operating Temp.:-40°C to 80°C
Power input:24VDC (12 - 32VDC), 5W
2 x Battery: 8 - 16.8VDC
Power output:5VDC, 5A per port
2 x Vbat (8 - 16.8VDC), 6A per port
Special Features: Battery charge
ISPDS
Internal SOM
The MILTECH410 is an integrated soldier power and data management system (ISPDS) combining 1G LAN, USB3 and SMBUS communication with intelligent power management for the dismounted soldier.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Standard Configurations

Model Description
1-410-000 Integrated Soldier Power and Data Management System (ISPDS) with USB3.0 and 1G Capabilities
MILTECH 410 Additional configurations available

Description

The MILTECH 410 creates an Open Architecture and Open Communication System for Field deployable applications. As a base ISPDS, it supplies 1 port of Fast Ethernet, 3 x USB 2.0 ports, 1 serial port and 1 external power source. Measuring just 4.6” x 4.85” x .98 ” the MILTECH 404 can connect up to 5 devices, one external power source, hosts an integrated system on module (SOM) to support field-deployed applications and manages critical power and battery charging information that has become critical to the success of the soldier modernization efforts.

Tailored Products to Meet Your Requirements

mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
