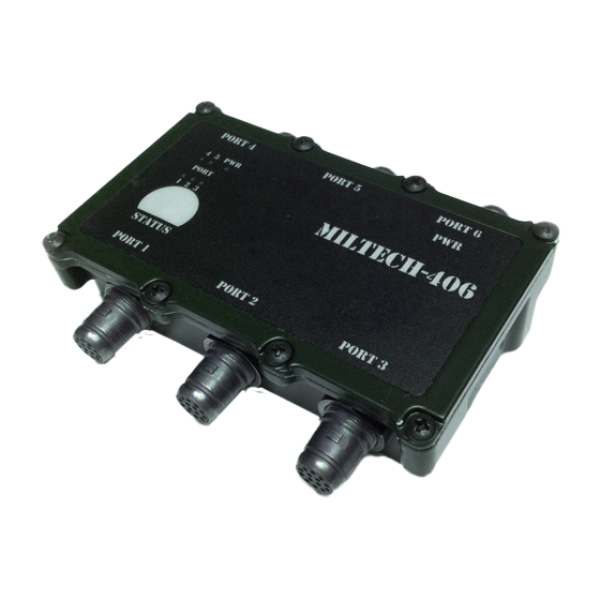

MILTECH 406 Military Rugged Portable Communication Grid

Key Features
Product Type:USB
Management:Unmanaged
Ports:
6 x 10/100M Copper
7 x Up to 7 x USB 2.0
1 x Serial S232 to USB
1 x Smart battery SOC to USB
1 x External power source input
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.82" X 3.07" X 0.98"97mm X 78mm X 25mm
Weight:5.29oz150g
Operating Temp.:-45°C to 85°C
Power input:5VDC, 5W

The MILTECH 406 is a rugged, military-grade communication grid combines LAN, USB, serial communication and SMBus in a single, lightweight, small form factor.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-406-000 Miniature portable communication grid
MILTECH 406 Additional configurations available
Description
The MILTECH 406 is a light-weight, fully integrated, adaptable systems that was specifically designed for soldiers of today’s digital battlefield. This unique concept enables delivery and collaboration of intelligence between electronic devices with different physical and logical communication ports, such as navigation systems, battery packs, headsets, warning sensors, video visor for weapons, night vision glasses and other “modern warfare” devices.

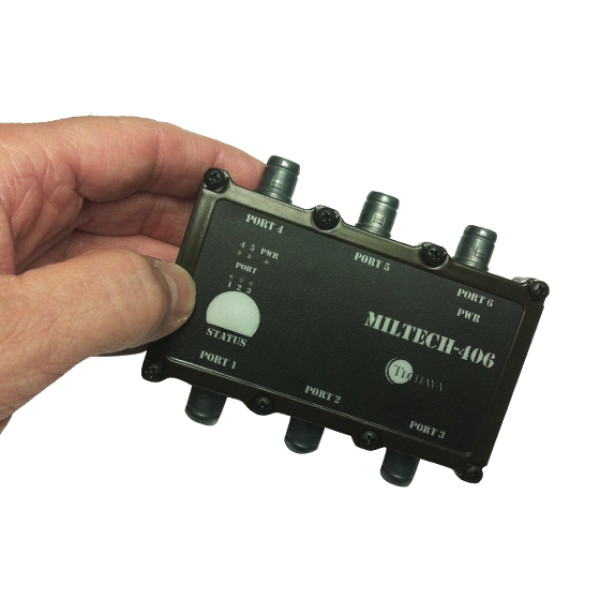

The MILTECH 406 small form factor of 3.8” x 3.07” x .98”, and its light weight (less than .5 lbs) make it an ideal communications grid that can be carried in smart combat vests by soldiers.
3D Model (STEP file)
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
