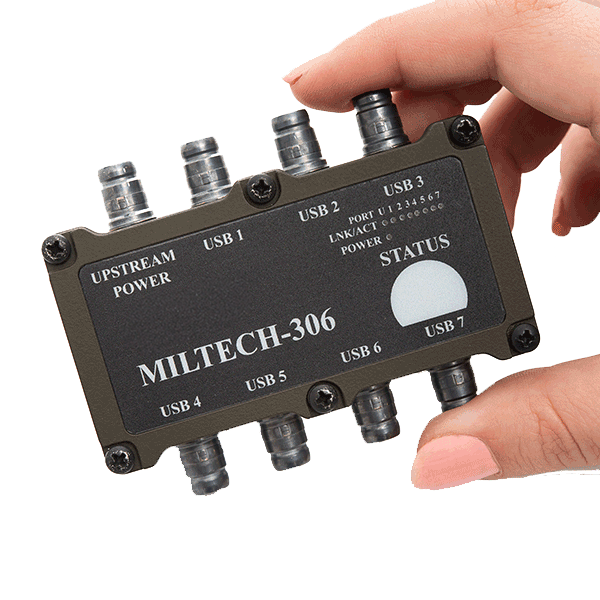

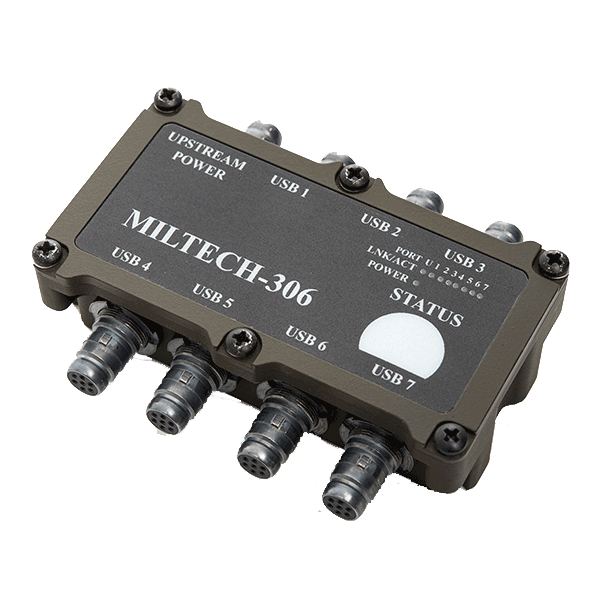

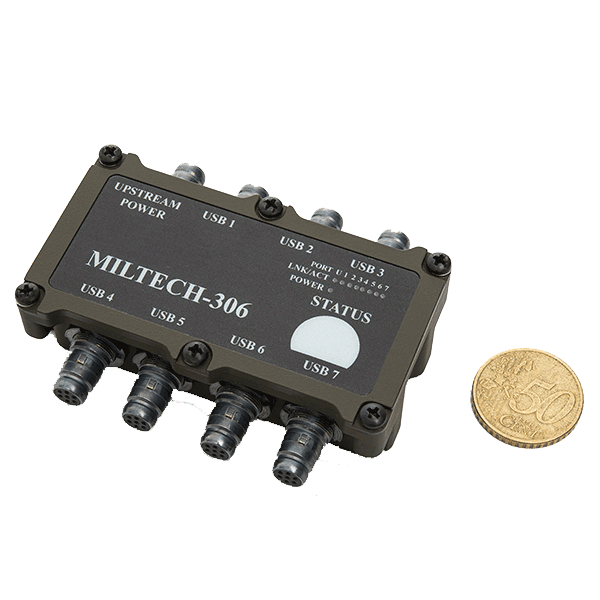

MILTECH 306 Miniature Rugged USB HUB

Key Features
Product Type:USB
Management:Unmanaged
Ports:
7 x USB2.0
Connectors:
Power: SCE2
USB: SCE2
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.24" X 2.52" X 1.02"82.2mm X 64.1mm X 26mm
Weight:4.94oz140g
Operating Temp.:-45°C to 85°C
Power input:5VDC, 2W

MILTECH 306 is a MIL-STD rugged USB offering 7+1 USB 2.0 Ports. It provides networked USB connectivity to computing devices, heads-up displays, storage and other future-soldier devices for soldiers and man-packable applications.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-306-002 8 Ports USB HUB
MILTECH 306 Additional configurations available
Description
One of the smallest solutions in the industry, the MILTECH 306 reduces load on the soldier, providing more space for equipment that increases mission awareness and success.

The unit operates on readily available 5VDC power and may easily be powered from computers and other devices with USB ports.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
