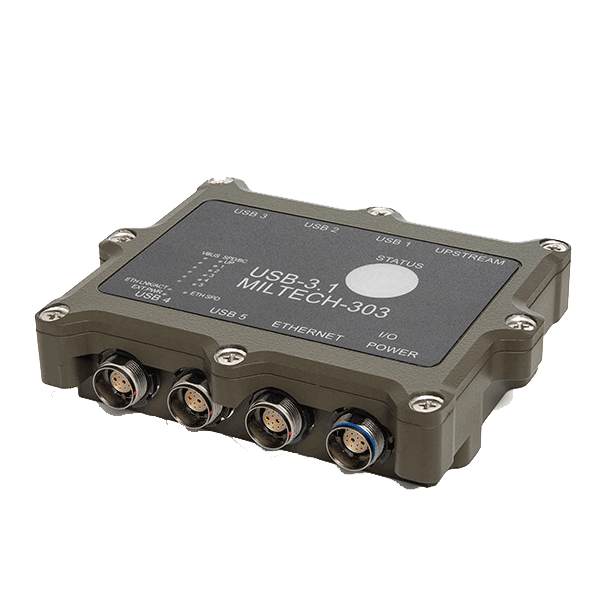

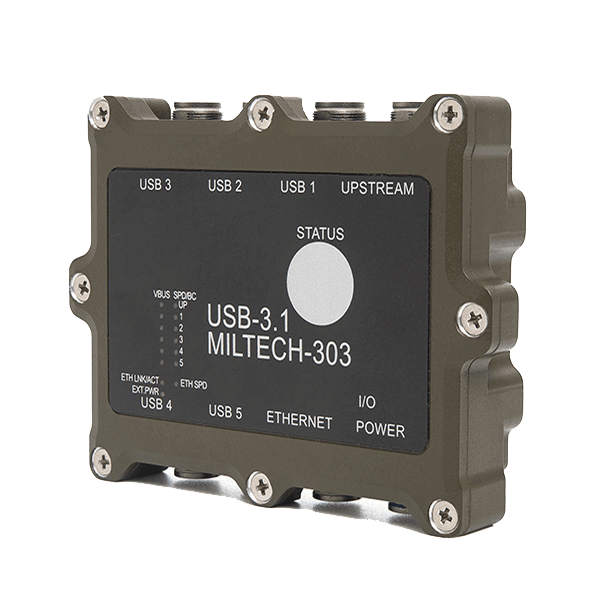

MILTECH 303
Military Rugged USB 3.1 HUB with Robust Power Management and Charging

Key Features

Product Type:USB
Management:Unmanaged
Ports:
1 x USB3.1/USB2 upstream port
5 x USB3.1/USB2 downstream ports
1 x Ethernet 10/100/1000M port via USB to LAN Bridge
1 x IO port for I2C/SPI/GPIO/External Power Input
Connectors:
USB: ODU
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.54" X 2.76" X 0.83"89.8mm X 70.2mm X 21.2mm
Weight:5.96oz169g
Operating Temp.:-40°C to 85°C
Power input:5VDC
Power output:5VDC, 15A per port
Special Features: Battery charge
MILTECH 303 is a Military Rugged USB 3.1 HUB with robust power management and charging. It has 5 x USB 3.1 ports, 1 Gigabit Ethernet port, and a dedicated IO port.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Standard Configurations

Model Description
1-303-000 MIL-STD Rugged USB 3.1 Hub
MILTECH 303 Additional configurations available

Description

The MILTECH 303 enables connectivity, robust power management and charging for multiple USB 3.0 devices (such as portable handhelds, sensors, storages, human interface devices, night vision goggles and GPS).

It has wide voltage range of 12-28VDC and up to 2A downstream power per port. It supports the four most popular battery charging profile including DCP, CDP, SDP and custom profiles via SMBus or OTP to power and charge USB devices. It features mechanical packaging enhancements designed for MIL-STD-810F airborne and ground environmental compliance and high reliability.

Tailored Products to Meet Your Requirements

mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
